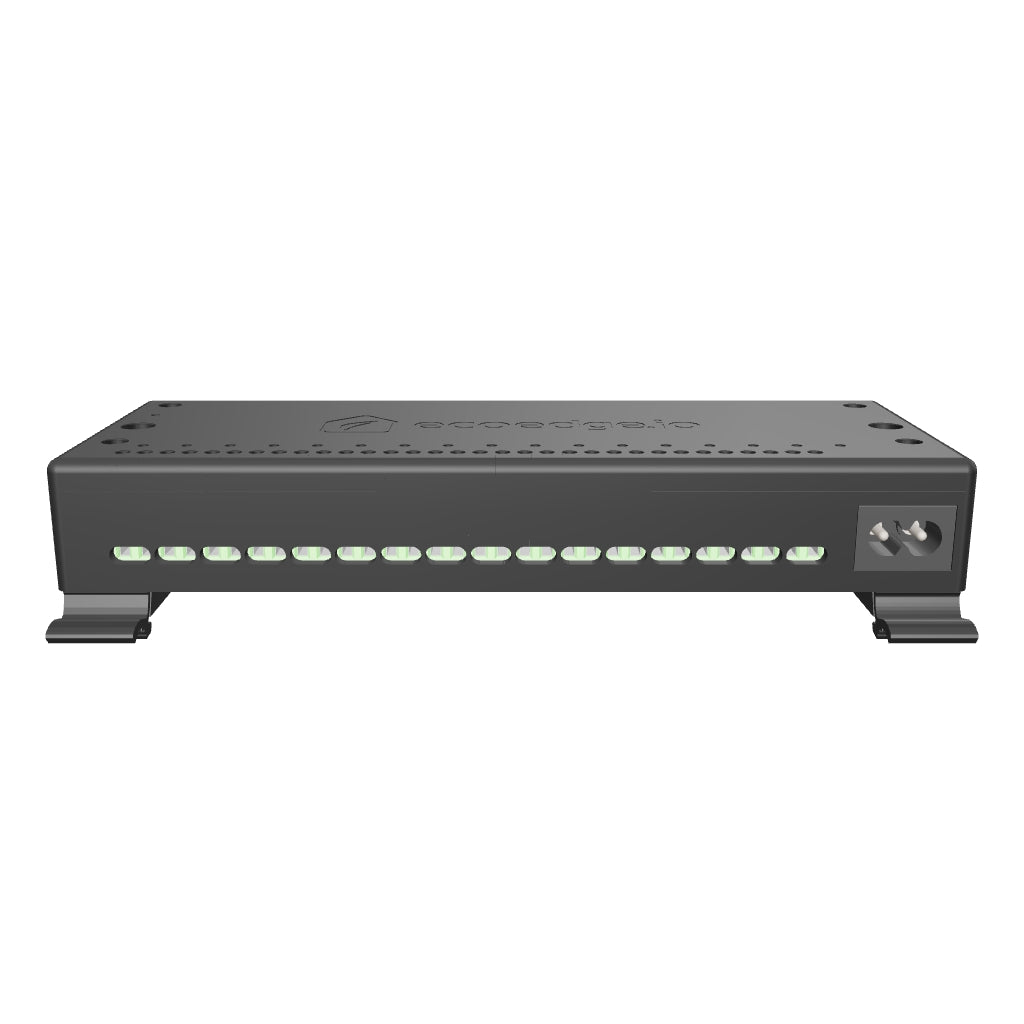

EcoEdge 16-Port 24V Controller
Take full control of your smart home or automation projects with the EcoEdge 16-Port 24V Controller — a powerful, compact, and Home Assistant–ready device designed for flexibility, efficiency, and reliability.
Key Features
- Reliable Connectivity - Built-in 2.4 GHz Wi-Fi (802.11 b/g/n) with internal 5 dBi antenna for strong and seamless integration.
- High-Capacity Outputs - 16 protected DC 24V ports, each delivering up to 1.7A (40.8W).
- Optimized Power - Total system power supply rated at 50W for balanced performance.
- Flexible Installation - Mount easily on a DIN rail or directly on a wall.
- Secure Connections - Screw terminal connectors for firm and reliable wiring.
- Smart Home Ready - Full Home Assistant MQTT auto-discovery. Instantly appears as a 16-port switch device.

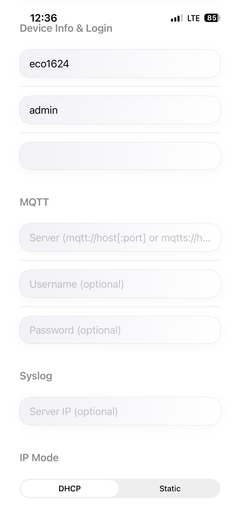

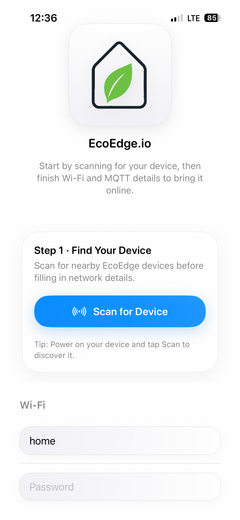

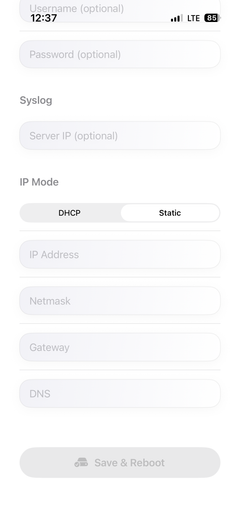

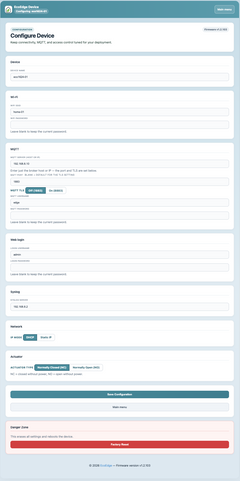

- Web Interface - Manage device settings, monitor port status, and update firmware online with ease.
Specifications
- Model: EcoEdge 16-Port 24V Controller.
- Input Voltage: 85–265VAC (withstands surges up to 280VAC).
- Input Frequency: 47–400Hz.
- Outputs: 16 × 24V DC ports.
- Max Per-Port Power: 1.7A (40.8W).
- Total Power Supply: 50W.
- Connectivity: Wi-Fi 2.4GHz (802.11 b/g/n).
- Installation: DIN Rail or Direct Wall Mount.
- Dimensions: 210mm × 80mm × 31mm.
- Connector Type: Screw Terminals.
Perfect For
- Underfloor Heating - Connect to heating actuators via Home Assistant thermostats.
- Relay Control (24V) - Manage relays, sensors, and automation circuits.
- Irrigation Systems - Operate 24V solenoid valves for sprinklers or drip irrigation.
- Custom Automation - Power and control any 24V DC device in your smart home setup.
Frequently Asked Questions
Does this work with Home Assistant?
Yes. ECO1624 uses full MQTT auto-discovery. It appears in Home Assistant as a 16-port switch device within seconds — no YAML configuration needed. Works with Home Assistant OS, Supervised, and Container.
What actuators are supported?
Both NC (normally closed) and NO (normally open) 24V actuators. Compatible types include underfloor heating manifold actuators, 24V irrigation solenoid valves, HVAC zone valves, and custom 24V relay circuits.
Does it need a cloud connection?
No. ECO1624 communicates entirely over your local network via MQTT. There is no cloud account, no subscription, and the device keeps working if your internet goes down.
What is the maximum load per port?
Each port delivers up to 1.7A at 24V DC (40.8W). Total system rating is 50W across all active ports simultaneously.
How do I update the firmware?
Over-the-air (OTA) via the built-in web UI. Navigate to the device IP in your browser and apply updates — no programmer cable or special tools required.
Does it fit on a DIN rail?
Yes. Standard 35mm DIN rail. The 210 × 80 × 31 mm form factor fits inside standard residential and commercial electrical enclosures. Wall mounting is also supported.
Can I use it for irrigation?
Yes. Standard 24V solenoid irrigation valves are fully compatible. Control all 16 valves independently via Home Assistant automations running on your local network.
Where can I find the documentation?
Full documentation is at docs.ecoedge.io.
